Flip Box
A card that turns over to reveal a back side on hover, keyboard focus or tap.
On this page

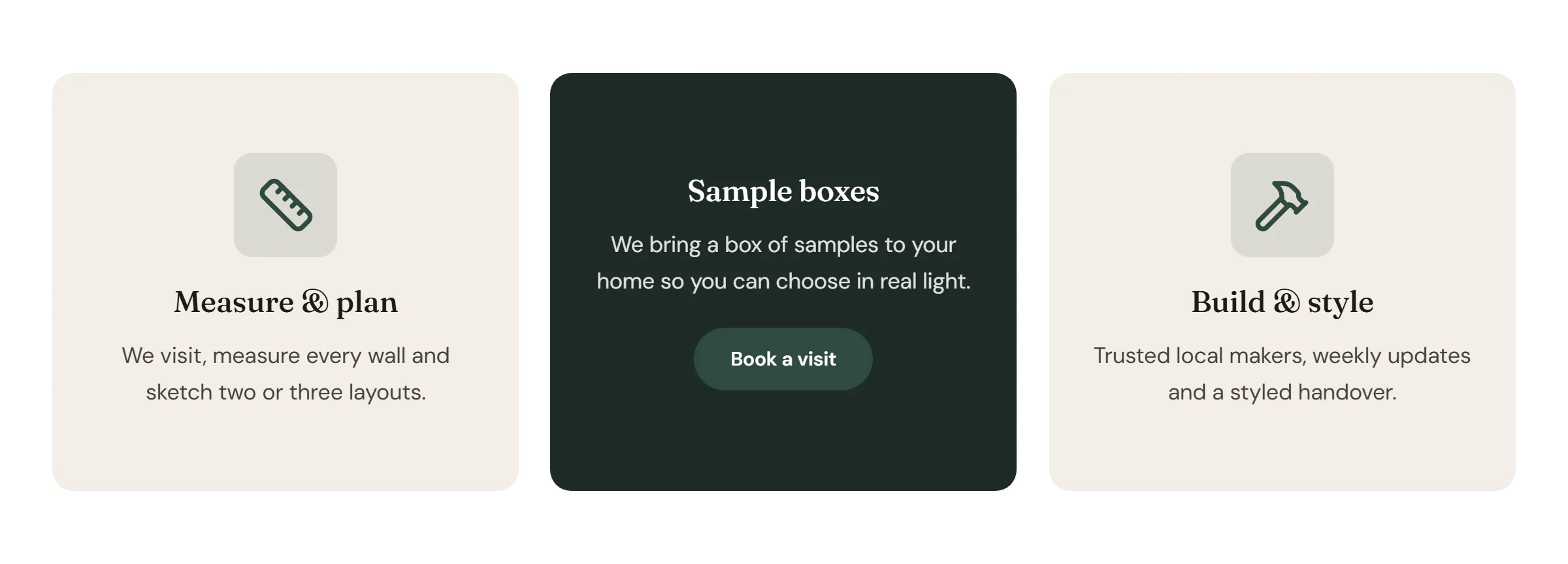

The Flip Box widget is a two-sided card. The front shows an icon or image, a title and a short text. When a visitor hovers over it, tabs to it or taps it, the card turns over and shows the back, with more text and a button. Use it for services, features or steps where a short teaser leads to details.

Add a Flip Box
Click Insert in the rail on the left and find Flip Box in the Marketing group, or type "flip" in the search box. Drag it onto the canvas, or click it to add it next to the selected element. See Add elements.
To place several cards side by side, put them in a row or grid container. See Grid layouts.
Edit the front and the back
The Content tab has one section for each side:
- Front: pick a Graphic (None, Icon or Image), then write the Title and Description. A Hint such as "Tap for more" tells visitors there is more on the back.
- Back: write the Title and Description, add a checklist if you like (List title and List, one item per line), then set the button's Button text and Button link.
To check the back side on the canvas, hover over the card. Visitors on phones and tablets tap the card to turn it over, and tap outside it (or press Esc) to turn it back. Buttons and links on the back still work with a tap.
A back that grows out of a corner
Choose Effect → Circle reveal for a back that spreads over the front as a circle, from the corner set in Reveal from (or from the middle). The front stays where it is underneath.
Let the card fit its text
Both sides share one height. When the back holds more than the front (a checklist and a button, say), turn on Fit the taller side in Design → Box: the card grows to the longer side, so nothing is cut off on any screen. Height then becomes the least height. Cards side by side in a grid all take the height of the tallest one.
Turn the card with a button
Set Turn the card (in Content → Effect) to With a round button for cards that should only turn when asked: a round + button sits in the bottom corner of the front, and a − button in the same corner of the back turns it back. Hovering does nothing, so a card never flips by accident while the pointer passes over it. Keyboard users press the button with Enter or Space; the focus moves to the button on the other side, and Esc turns the card back. Screen readers hear "Show details" or "Hide details" with the front title; change these words in Button label: show and Button label: hide. Style the button in Design → Round button.
Content tab settings
| Setting | What it does |
|---|---|
| Graphic | None, Icon or Image above the front title. Default: Icon. |
| Icon | The icon on the front. Shown when Graphic is Icon. |
| Image | The image on the front. Shown when Graphic is Image. Supports dynamic data. |
| Title | The front title. Supports dynamic data. |
| Description | The front text. Supports dynamic data. |
| Hint | A short line under the front text, such as "Tap for more", with an icon after it. |
| Hint icon | The icon after the hint (an arrow by default). Shown when there is a hint. |
| Setting | What it does |
|---|---|
| Title | The back title. Supports dynamic data. |
| Description | The back text. Supports dynamic data. |
| List title | A small heading over the checklist, such as "What is included". |
| List | A checklist under the back text, one item per line. |
| List icon | The tick before each item (a check by default). Shown when there is a list. |
| Button text | The button label. Supports dynamic data. |
| Button link | Where the button goes. Without a link the button is hidden, and the card itself can take keyboard focus so keyboard users can still reveal the back. |
| Button style | Primary, Secondary, Outline, Ghost or Text link, from your Design System. Default: Primary. |
| Button size | S, M, L or XL. Default: M. |
| Setting | What it does |
|---|---|
| Effect | How the back appears: Flip horizontal, Flip vertical, Slide, Fade, Zoom or Circle reveal. Default: Flip horizontal. |
| Reveal from | Where the circle starts: a corner or the middle. Default: Top left corner. Shown for Circle reveal. |
| Slide from | Bottom, Top, Right or Left. Default: Bottom. Shown for the Slide effect. |
| 3D depth | Lifts the content off the card while it flips. Off by default. Shown for the flip effects. |
| Duration (ms) | How long the effect takes (100–3000). |
| Turn the card | On hover, focus or tap (the default) or With a round button: a + button on the front and a − button on the back turn the card; hovering does not. See Turn the card with a button. |
| Button label: show / Button label: hide | What screen readers announce for the two round buttons, followed by the front title. Default: Show details, Hide details. Shown with the round button. |
| Title HTML tag | The tag of both titles: H1 to H6, DIV, SPAN or P. Default: H3. |
Design tab settings
| Section | Settings |
|---|---|
| Box | Height (both sides share it; 320px by default), Fit the taller side (the card grows to the longer side; Height becomes the least height), Border radius, Border, Shadow, Focus ring color (the outline shown when the card has keyboard focus). |
| Front | Background (color, gradient or image; the surface color by default), Overlay (tints a background image so the text stays readable), Text color, Padding, Alignment, Vertical position. Icon / image: Icon color, Icon background, Icon size or Image width and Image radius, Spacing below. Title: Typography, Color, Spacing below. Description: Typography, Color. Hint: Typography, Color, Spacing above. |
| Back | Background (the secondary color by default), Overlay, Text color, Padding, Alignment, Vertical position. Title: Typography, Color, Spacing below. Description: Typography, Color. List: Title typography, Title color, Typography, Color, Icon color, Space between items, Spacing above. |
| Button | Typography, Text color, Background and Border color (with Normal and Hover tabs), Border radius, Spacing above. Shown when there is button text. |
| Round button | Size (40px by default), Icon size, Distance from the corner (24px), Background (white) and Icon color. Shown when Turn the card is With a round button. |
The Design tab also has the sections every element shares: Spacing & position, Background & border and Mask. See Spacing, size & position.
Behaviour tab
The Behaviour tab has the settings every element shares: anchor and classes, entrance animations, motion effects, visibility per device, display conditions and interactions. See Motion & effects.
Tips
- Both sides have the same height. Keep the back text short, raise Height in Design → Box, or turn on Fit the taller side, so nothing is cut off.
- Put the important information on the front too. Some visitors never turn the card over.
- Visitors who prefer reduced motion see the back appear instantly, without the animation.
